How to use Equalizer APO

We will show you how to use Equalizer APO.

Equalizer APO is Windows software that can apply audio processing to all sounds played on PC . For audio processing, you can use volume, equalizer, convolution of IR (impulse response), VST and so on.

Install Equalizer APO

If you are using 64bit Windows, please download the 64bit version from the link below and install it.

Equalizer APO

If you are using 32-bit Windows, please download the 32-bit version from the link below.

Equalizer APO Downloads

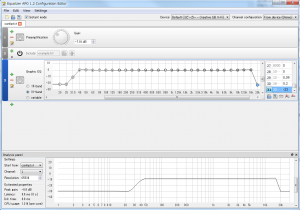

Equalizer APO setting screen

Open Equalizer APO 1.2 / Configuration Edtor from the Windows start menu.

equalizer apo

Equalizer with Equalizer APO

Equalizer can be applied in the arrow part of the screen below.

equalizer apo equalizer

Change the volume with Equalizer APO

You can adjust the gain with the arrows on the screen below. Even if you just cut it with an equalizer, the waveform will change and the peak will pop out so it may be better to lower the gain to prevent clipping.

equalizer apo gain

Use VST with Equalizer APO

To prevent clipping, try inserting the limiter at the end of the Equalizer APO.

Click the plus icon. Please choose Plugins / VST plugin.

equalizer apo add vst

The VST container was added at the very end of the process.

equalizer apo vst

Click the file icon.

equalizer apo open vst

Since the VST selection screen appears, select the VST file (extension .dll). Only VST 2 is supported. Since there is no bridge function, only VST with the number of bits matching Equalizer APO can be used.

equalizer apo choose vst

We were able to load VST.

equalizer apo vst loaded

Please click "Open panel" button.

equalizer apo vst open ui

The UI is displayed. Unlike DAW, please note that the setting will not be reflected unless you press "OK" button or "Apply" button. If "Apply automatically" is checked, settings will be automatically reflected as with DAW.

equalizer apo limiter

How to Japaneseize Equalizer APO

The following articles show you how to translate Equalizer APO into Japanese.

How to Japaneseize Equalizer APO

Possibility of Equalizer APO

Equalizer APO can be used in various ways.

Because the sound of YouTube movie is so loud that it cuts out high, or because there are many variations in the sound of YouTube movies so normalize it, because the dynamic range of the movie is too big to listen at home so compressing, speaker frequency characteristic correction And distance correction and so on.

Equalizer APO has made it possible to receive the benefits of VST not only for music producers but also gamers and YouTube viewers .

Summary

We introduced how to use Equalizer APO.

Actually, Equalizer APO taught foreign users that we use ITDPanner VST of our company for speaker correction. Please let me know if you want this VST!
